Pressurised Water

Fleming provides an extremely diverse array of pressurised water temperature control units

Fleming has partnered exclusively with Regloplas–  specialists in the design and production of temperature control units and solutions. Regloplas maintains a worldwide network of representatives and experience in over 50 countries and is dedicated to providing energy efficient and environmentally friendly temperature control solutions. The pressurised water temperature control units are suitable for temperatures up to 230 °C and come in a variety of performance variants from smart to XL.

P100smart

Temperature control unit for water up to 100 °C

  • RT70 control system with 3.5″ TFT display
  • Pump with high flow rate: 40 l/min
  • Leak-free pump with magnetic coupling
csm_Regloplas_P100XS_RT200_temperature_control_0597_94352577ec

P100XS

Pressurised-water temperature control unit for plastic injection moulding applications used in micro injection moulding machines up to 100 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 11 l/min
  • Direct cooling
csm_Regloplas_P100S_Temperature_Control_Pressurized_Water_RT200_0434_2af18cd786

P100S

Pressurised-water temperature control unit up to 100 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 40 l/min
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P100M_Temperature_Control_Pressurized_Water_RT200_0402_4e928d948e

P100M

Pressurised-water temperature control unit up to 100 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 90 l/min
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P100L_Temperature_Control_Pressurized_Water_RT200_0179_d463923ac6

P100L

Pressurised-water temperature control unit up to 100 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 140 l/min
  • Pressure control
  • Direct cooling: maximum cooling capacity
  • Solid-state relay instead of heating contactor
csm_Regloplas_P140smart_0031_Front_f4ff723473

P140smart

Pressurised-water temperature control unit up to 140 °C

  • RT70 control system with 3.5″ TFT display
  • Pump with high flow rate: 40 l/min
  • Leak-free pump with magnetic coupling
csm_Regloplas_P140XS_RT200_temperature_control_0597_7dea95e89d

P140XS

The P140XS is equipped with proven REGLOPLAS technology and with all the advantages of the REGLOPLAS large unit series, in the temperature range up to 140 °C medium temperature.

  • Control system RT200 or RT100
  • Pump with high flow rate: 11 l/min
  • Low-scaling cooling system “SK”

P140S

Pressurised-water temperature control unit up to 140 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 40 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P140M_Temperature_Control_Pressurized_Water_RT200_0353_9294683894

P140M

Pressurised-water temperature control unit up to 140 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 60 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160L_P140L_P180L_Temperature_Control_Pressurized_Water_RT200_0013_d43bb1cda7

P140L

Pressurised-water temperature control unit up to 140 °C

  • Control system RT200 or RT100
  • Pump with high pumping capacity: 140 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P141XL_P200XL_P181XL_P161XL_Temperature_Control_Pressurized_Water_RT200_0312_73fcb4a685

P141XL

Pressurised-water temperature control unit up to 140 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 200 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Solid-state relay instead of heating contactor
csm_Regloplas_P140S_P160S_P180S_P200S_Temperature_Control_Pressurized_Water_RT200_0346_7c6a818c08

P160S

Pressurised-water temperature control unit up to 160 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 40 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160M_Temperature_Control_Pressurized_Water_RT200_0353_7b68b45a0b

P160M

Pressurised-water temperature control unit up to 160 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 100 l/min
  • Low-scale cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160MD_P180MD_Temperature_Control_Pressurized_Water_RT200_0282_b9c164c1c8

P160MD

Dual zone pressurised-water temperature control unit up to 160 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 100 l/min
  • Low-scale cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160L_P140L_P180L_Temperature_Control_Pressurized_Water_RT200_0013_03d7b95dde

P160L

Pressurised-water temperature control unit up to 160 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 140 l/min
  • Low-scale cooling system “SK”
  • Pressure control
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160LD_P180LD_Temperature_Control_Pressurized_Water_RT200_0024_e964982f97

P160LD

Dual zone pressurised-water temperature control unit up to 160 °C

  • Control system RT200 or RT100 with 2 seperate displays
  • Robust pump with flow rate of 80 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Solid-state relay instead of heating contactor
  • Heavy particle separator in the inlet
csm_Regloplas_P141XL_P200XL_P181XL_P161XL_Temperature_Control_Pressurized_Water_RT200_0312_3858f9342a

P161XL

Pressurised-water temperature control unit up to 160 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 200 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Solid-state relay instead of heating contactor
csm_Regloplas_P140S_P160S_P180S_P200S_Temperature_Control_Pressurized_Water_RT200_0346_1db40105ea

P180S

Pressurised-water temperature control unit up to 180 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 40 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P180M_Temperature_Control_Pressurized_Water_RT200_0032_4a371066ab

P180M

Pressurised-water temperature control unit up to 180 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 100 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160MD_P180MD_Temperature_Control_Pressurized_Water_RT200_0282_70c6c9d386

P180MD

Dual zone pressurised-water temperature control unit up to 180 °C

  • Control System RT200 or RT100
  • Pump with high flow rate: 100 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160L_P140L_P180L_Temperature_Control_Pressurized_Water_RT200_0013_5db20e4bbd

P180L

Pressurised-water temperature control unit up to 180 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 140 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Low-scaling cooling system “SK”
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160LD_P180LD_Temperature_Control_Pressurized_Water_RT200_0024_ccf7a48744

P180LD

Dual zone pressurised-water temperature control unit up to 180 °C

  • Control system RT200 or RT100 with 2 seperate displays
  • Robust pump with flow rate of 80 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P141XL_P200XL_P181XL_P161XL_Temperature_Control_Pressurized_Water_RT200_0312_676b11bdc9

P181XL

Pressurised-water temperature control unit up to 180 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 200 l/min
  • Low-scale cooling system “SK”
  • Pressure control
  • Solid-state relay instead of heating contactor
csm_Regloplas_P140S_P160S_P180S_P200S_Temperature_Control_Pressurized_Water_RT200_0346_328b9a42e3

P200S

Pressurised-water temperature control unit up to 200 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 40 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P200M_Temperature_Control_Pressurized_Water_RT200_0001_6adc3aebec

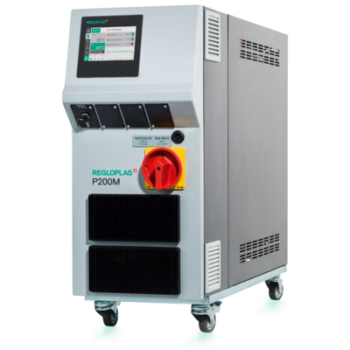

P200M

Pressurised-water temperature control unit up to 200 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 100 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_150_Temperature__Control_RT200_0422_f3e8fa2fac-1

P200MD

Dual zone pressurised-water temperature control unit up to 200 °C

  • Control System RT200 or RT100
  • Pump with high flow rate: 100 l/min
  • Low-scaling cooling system “SK”
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P160LD_P180LD_Temperature_Control_Pressurized_Water_RT200_0024_ccf7a48744-1

P200LD

Dual zone pressurised-water temperature control unit up to 200 °C

  • Control system RT100 or RT200, with 2 seperate displays
  • Robust pressure control system – New: active and passive
  • Patented low-scale cooling system “SK”
  • Robust pumps with flow rate of 80 l/min
  • Leak-free pump with magnetic coupling
  • Heavy particle separator in the inlet
csm_Regloplas_P141XL_P200XL_P181XL_P161XL_Temperature_Control_Pressurized_Water_RT200_0312_b28c40fa03

P200XL

Pressurised-water temperature control unit up to 200 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 200 l/min
  • Low-scale cooling system “SK”
  • Pressure control
  • Solid-state relay instead of heating contactor
csm_Regloplas_P230S_P230M_Temperature_Control_Pressurized_Water_RT200_0068_1_01_d0a4218274

P230S

Pressurised-water temperature control unit up to 230 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 40 l/min
  • Low-scaling cooling system “SK”
  • Patented heater pressure stabaliser
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
csm_Regloplas_P230S_P230M_Temperature_Control_Pressurized_Water_RT200_0068_1_01_a38868516e

P230M

Pressurised-water temperature control unit up to 230 °C

  • Control system RT200 or RT100
  • Pump with high flow rate: 85 l/min
  • Low-scale cooling system “SK”
  • Patented heater pressure stabaliser
  • Pressure control
  • Leak-free pump with magnetic coupling
  • Solid-state relay instead of heating contactor
