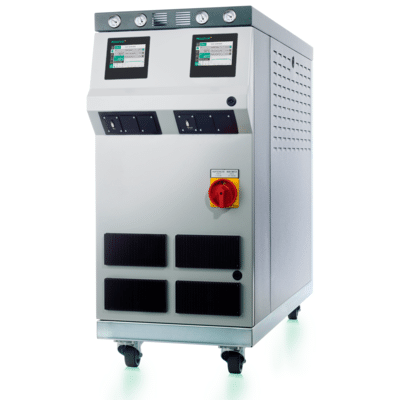

The P200LD sets a new standard in dual-zone pressurised-water temperature control units, offering precision control up to 200°C. Equipped with the advanced RT200 control system featuring two separate displays, it ensures accurate regulation for industrial processes. A notable enhancement is the robust pressure control system, now incorporating both active and passive elements, ensuring stable and reliable performance. The unit integrates a patented low-scale cooling system “SK” and robust pumps with a flow rate of 80 l/min, guaranteeing efficient heat dissipation and circulation within the system.


Technical Specifications and Performance

Technical data for the P200LD reveals its capability to handle temperatures up to 200°C, with a filling quantity of 3.0 litres and an expansion volume of 2.0 litres. The unit offers a heating capacity of 17 kW at 400V and cooling capacities ranging from 86 kW to 103 kW. With a maximum pressure of 9.0 bar, the P200LD operates with precision and reliability. Its IP54 protection degree housing, along with an operating voltage range of 400 V, 50 Hz, 3 PE, and 480 V, 60 Hz, 3 PE, ensures durability and stability in various industrial environments.


Standard Equipment and Options

Standard equipment includes essential features such as a solid-state relay (SSR) instead of a heating contactor, a pressure gauge for system pressure monitoring, and a patented low-scale cooling system (SK). The unit also offers options like electronic flow measurement, hand valve in the inlet and outlet, and compatibility with the RT100 control system. Represented by Fleming Dynamics Pty Ltd in Australia, the P200LD caters to a wide range of applications including injection molding and die casting, underscoring its versatility and suitability for diverse industrial needs.
